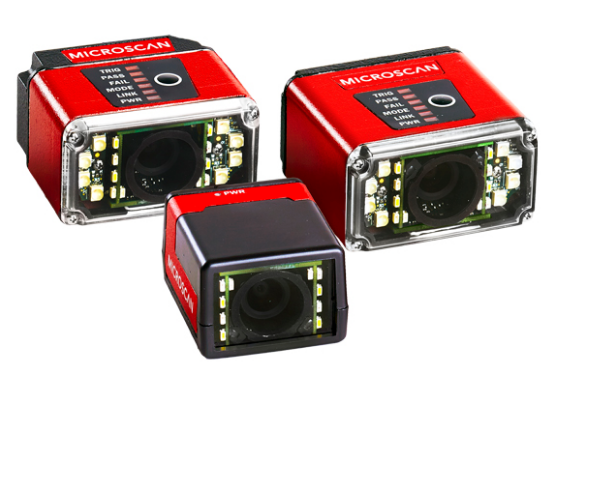

| ID-20 | ID-30 | ID-40 |
| 解码 | Standard (High-Contrast 1D)
Plus (High-Contrast 1D/2D)
X-Mode (Poor or Damaged) | Standard (High-Contrast 1D)
Plus (High-Contrast 1D/2D)
X-Mode (Poor or Damaged + DPM) | Standard (High-Contrast 1D)
Plus (High-Contrast 1D/2D)
X-Mode (Poor or Damaged + DPM) |
|---|
| 速度 | Standard (up to 10 FPS) | Standard (up to 10 FPS) or High-Speed (max. sensor FPS) | Standard (up to 10 FPS) or High-Speed (max. sensor FPS) |
|---|
| 精度 | Standard- or High-Density | Standard- or High-Density | Standard- or High-Density |
|---|
| 传感器 (CMOS) | WVGA 0.34MP (752x480)
Global Shutter, up to 60 FPS
SXGA 1.2MP (1280x960)
Global Shutter, up to 42 FPS
QSXGA 5.0MP (2592x1944)
Rolling Shutter, up to 5 FPS | WVGA 0.34MP (752x480)
Global Shutter, up to 60 FPS
SXGA 1.2MP (1280x960)
Global Shutter, up to 42 FPS
QSXGA 5.0MP (2592x1944)
Rolling Shutter, up to 5 FPS | WVGA 0.34MP (752x480)
Global Shutter, up to 60 FPS
SXGA 1.2MP (1280x960)
Global Shutter, up to 42 FPS
QSXGA 5.0MP (2592x1944)
Rolling Shutter, up to 5 FPS |
|---|
| 曝光 | 50 - 100,000
Default: 2,500 μs | 50 - 100,000
Default: 2,500 μs | 50 - 100,000
Default: 2,500 μs |
|---|
| 颜色 | QSXGA only | QSXGA only | QSXGA only |
|---|
| 焦距 | Fixed (50-300 mm) | Fixed (50-300 mm)
Liquid Lens Autofocus | Fixed (50-300 mm)
Liquid Lens Autofocus |
|---|
| 通信方式 | USB 2.0 High Speed, Ethernet over USB / HID | RS-232, USB 2.0 High Speed, Ethernet over USB / HID | RS-232, Ethernet TCP/IP, EtherNet/IP?, PROFINET?,
Power over Ethernet (PoE) |
|---|
| 连接器 | Micro-B USB | High-Density 15-Pin D-Sub | M12 12-Pin (Power), M12 8-Pin (Ethernet) |
|---|
| 线缆 | N/A | 0.91 m | N/A |
|---|
| 照明 | Inner LEDs: 4 White/4 Red
Outer LEDs: N/A | Inner LEDs: 4 White/4 Red
Outer LEDs: 8 High-Intensity White or Red (Optional) | Outer LEDs: 8 High-Intensity
White or Red (Optional) |
|---|
| 数字 I/O | N/A | 3 in/3 out
Trigger Input: 5-28V rated (0.16mA @ 5VDC); New Master: 5 to 28V rated (0.16mA @ 5VDC); Default: 3.3V rated (0mA @ 3.3V)
Outputs (1, 2, 3): 5V TTL-compa tible, can sink 10mA and source 10mA | 3 in/3 out, Optoisolated
Trigger Input; New Master:
Bi-directional, opto-isolated, 4.5-28V rated (10mA @ 28VDC)
Outputs (1, 2, 3): Bi-directional, opto-isolated, 1-28V rated (ICE < 100mA at 24VDC, current limited by user) |
|---|
| 电气参数 | 5 VDC ± 5 %,
350 mA at 5 VDC (typ.) | 5 VDC ± 5 %,
600 mA at 5 VDC (typ.) | 4.75-30 VDC, 200 mV p-p max
ripple, 150 mA at 24 VDC (typ.) |
|---|
| 尺寸 | 24 mm x 34 mm x 39 mm | 25 mm x 45 mm x 38 mm | 25 mm x 45 mm x 45 mm |
|---|
| 重量 | 26 g | 46 g (包括线缆) | 68 g |
|---|
| 外壳 | IP40,塑料 | IP54, 铝 | IP65, 铝 |
|---|
| 指示 | Target Pattern,
Good Read Green Flash | Target Pattern,
Good Read Green Flash,
Performance LEDs | Target Pattern,
Good Read Green Flash,
Performance LEDs |
|---|
